RFID Overhead System

Product Description

Dongguan Lifangmei Electronic Technology Co., Ltd. Was founded in 2010 and we have been specilized in RFID System area for long years in China. We are a professional direct Chinese factory and Our RFID systems have a competitive price advantage with great quality， so far also our RFID System cover most places all over the world. We look forward to becoming your trusted long-term partner in China.

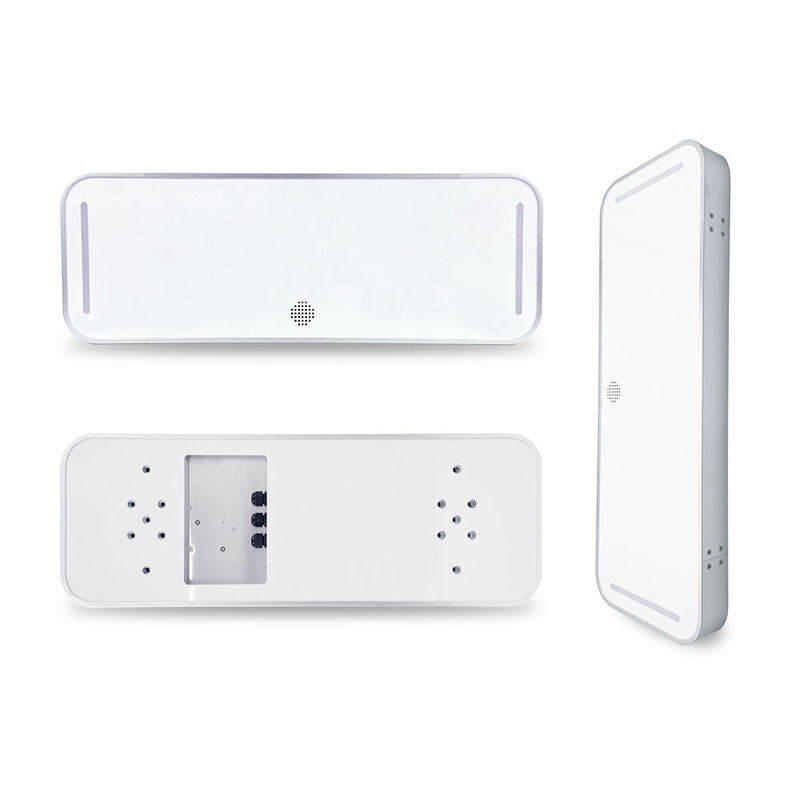

This RFID system is a high-performance overhead UHF RFID antenna newly developed by Lifangmei and made of high quality Acrylic material. This Overhead RFID system is a Independent intellectual property design and supports the ISO18000-6C protocol ，besides this RFID Overhead System has an optional output power of 10dBm~30dBm. The RFID Overhead System has strong multi-tag recognition capabilities and strong anti-interference ability, good scalability and fashionable appearance, especially this RFID Overhead System is suitable for shopping malls, clothing stores, luggage stores, shoes and hats store.

Hardware Performance

Model No	LFM-DZ001
WorkingFrequency	13.56MHZ
Hardware Interface
Communication Interface	RJ45(10M/100M),RS232(9600-230400bps),RS485(19200-230400bps）
Optional	WIFI(2.4G),4G(All Netcom),POE（802.3af/802.3at）
Protocol	Modbus,HID,HTTP,HTTPS,MQTT,TCP
Indicator light	Power indicator light (green light), status indicator light (red light）
GPIO	4 channels of input, 8 channels of strong drive output (each channel can draw current up to 250mA)
Power Supply/Power Consumption
Power supply	Power supply 9-24V standard adapter 12V/2A POE power supply (compatible with 802.3af or 802.3at standard)
POE Power Supply Capability	Use 100 meters of Category 5e network cable, there are deviations in different models of POE switches. Powered by 803.at mode, the maximum load can be 25.1w (11.93V/2.1A).
Environmental Characteristics
Working temperature	-25℃±65℃
Storage temperature	-45℃±85℃
Humidity	5-95% non-condensing
Safety
Adapter	Air discharge 8KV, contact discharge 6KV; surge immunity: 4KV
Sing board	Contact discharge 8KV
Dimension
LWH	200mm X 575mm X 45mm
